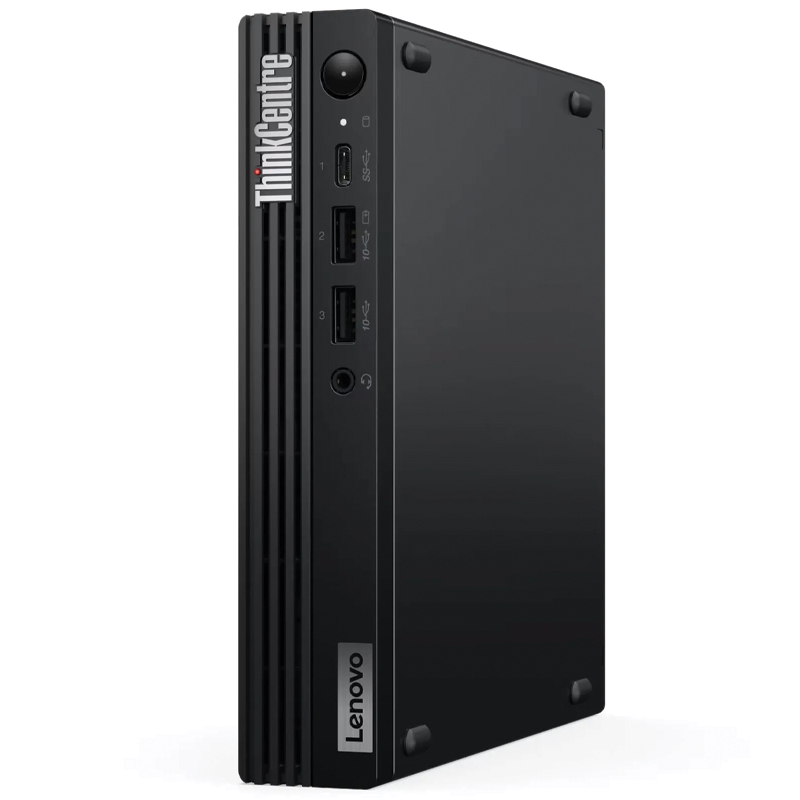

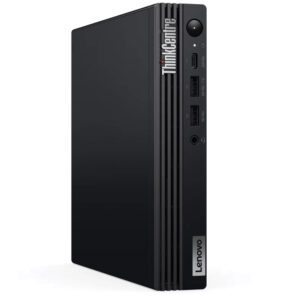

Lenovo ThinkCentre Tiny Desktop Intel Core i7-14700T | 16GB RAM | 512GB SSD | 12TD0041GR

Performance

• Processor: Intel Core i7-14700T, 20C (8P + 12E) / 28T, Max Turbo up to 5.2GHz, P-core 1.3 / 5.0GHz, E-core 0.9 / 3.7GHz, 33MB

• Graphics: Integrated Intel UHD Graphics 770

• Chipset: Intel Q670 Chipset

• Memory: 1x 16GB SO-DIMM DDR5-5600

• Memory Slots: Two DDR5 SO-DIMM slots, dual-channel

• Max Memory: Up to 64GB (2x 32GB)

• Storage: 512GB SSD M.2 2280 PCIe 4.0×4 NVMe Opal

• Max Storage Support: Dual SSD, up to 2x M.2 2280 SSD (up to 2TB each)

• RAID Preset: None

• Card Reader: None

• Optical: None

• Audio Chip: Realtek ALC233VB or Conexant CX11771 codec

• Speakers: 2W x1

• Power Supply: 135W 89% Adapter

Design

• Keyboard: USB Traditional, Arabic, Black

• Mouse: USB Calliope Mouse, Black

• Expansion Slots: 3x M.2 (1 WLAN + 2 SSD)

• Case Color: Black

• Stand: None

• Dust Filter: None

• Toolless Chassis Screw: Yes

• Mounting: VESA Mount

• Form Factor: Tiny (1L)

• Dimensions: 179 x 182.9 x 36.5 mm (7.05 x 7.2 x 1.44 inches with rubber feet)

• Weight: 1.25 kg (2.76 lbs)

Connectivity

• WLAN + Bluetooth: Realtek Wi-Fi 6 RTL8852BE, 802.11ax 2×2 + BT5.3

• Ethernet: Integrated 100/1000M

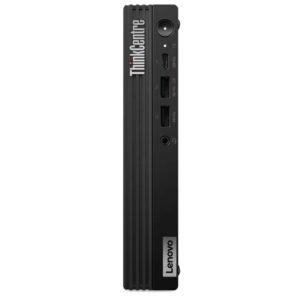

• Front Ports: 1x USB-C 3.2 Gen 1, 2x USB-A 3.2 Gen 2, 1x USB-A 3.2 Gen 2 (Always On), 1x Headphone/Mic combo

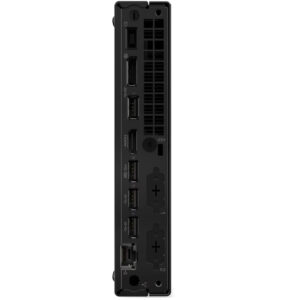

• Rear Ports: 1x USB-A 2.0 (Smart Power On), 1x USB-A 3.2 Gen 1, 2x USB-A 3.2 Gen 2, 1x HDMI 2.1 TMDS, 1x DP 1.4a, 1x Ethernet RJ-45

Security & Privacy

• Security Chip: Discrete TPM 2.0 (TCG, FIPS 140-2 certified)

• Locks: Kensington Security Slot 3×7 mm

• Chassis Intrusion Switch: Yes

• Fingerprint Reader: None
